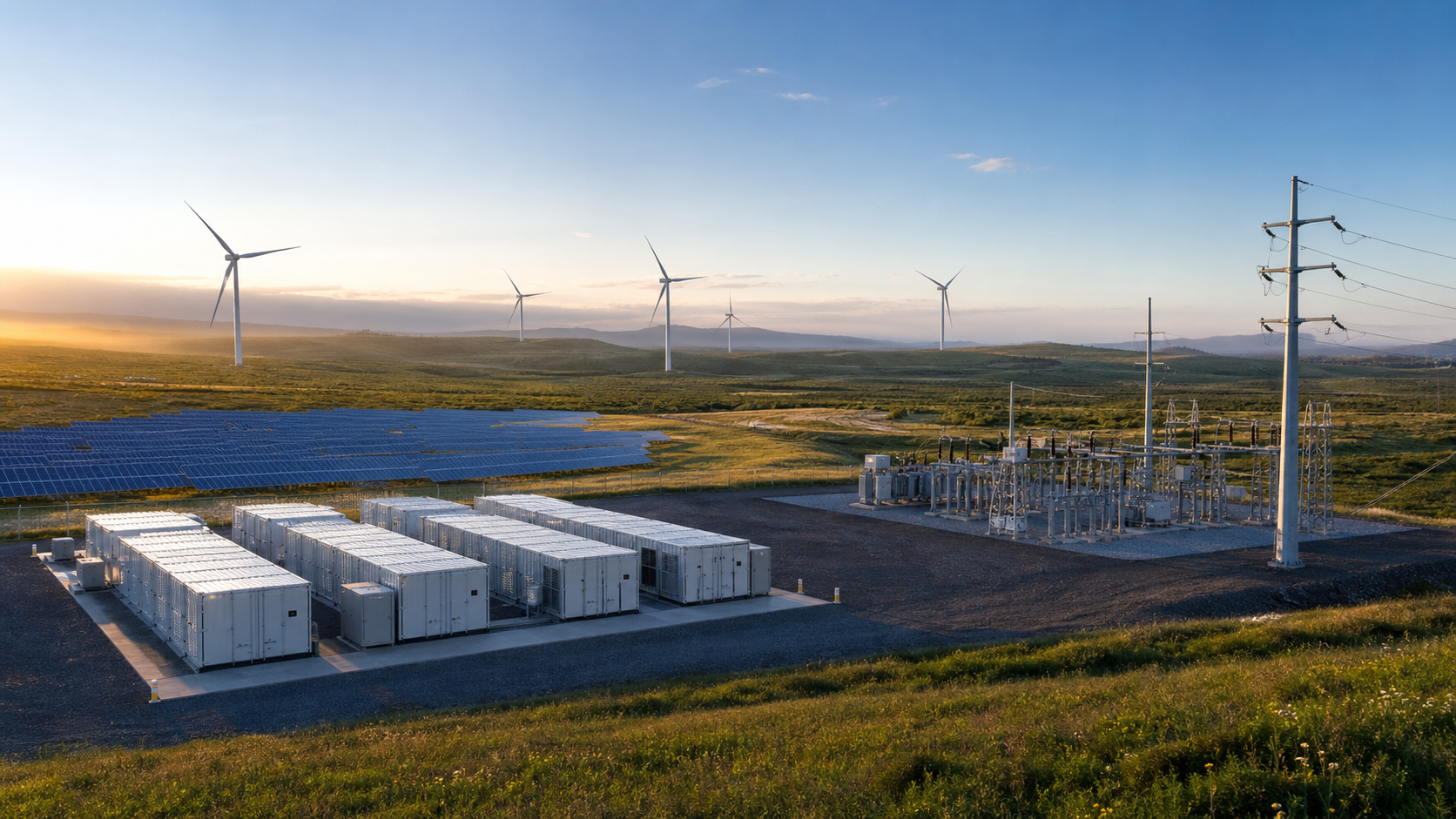

A renewable plant can pass equipment-level acceptance tests and still curtail unexpectedly, oscillate in reactive power, or disconnect during a disturbance. The recurring mistake is treating the point of interconnection as a passive outlet. In reality, the wind turbines, PV inverters, BESS power-conversion systems, plant power controller, transformer, collector network and utility protection form one dynamic system. Each device may be compliant in isolation while their combined response violates voltage, frequency or ride-through requirements.
The pain point: capacity exists, energy does not reach the grid
The commercial symptom is lost yield. The engineering signatures are usually less obvious: reactive-power saturation at high active power, a plant controller chasing measurements delayed by the SCADA path, repeated inverter current limiting during voltage dips, or protection acting before controls finish a permitted ride-through response. Increasing a power limit may hide the symptom at one operating point and reduce stability somewhere else.
The first useful model is not annual energy production. It is a control-boundary map showing who regulates active power, reactive power, voltage and frequency at each time scale. Millisecond current loops belong inside converters. Device-level power loops act more slowly. The plant controller coordinates the fleet. Grid dispatch and SCADA sit slower again. Instability appears when two layers believe they own the same variable or when a slow measurement is used to drive a fast correction.
Weak grids change the assumptions
At a strong connection point, voltage behaves almost like an imposed boundary. At a weak connection point, inverter current materially changes local voltage, and local voltage changes what current the inverter can deliver. Cable and transformer impedance, short-circuit ratio, X/R ratio and the mix of grid-following controls determine whether a tuning set validated at the factory remains stable on site.
A weak-grid study should therefore test operating envelopes, not one nominal case:
- minimum and maximum grid strength;
- high active power with high reactive demand;
- low irradiance or turbulent wind with rapidly changing setpoints;
- one feeder, transformer or BESS block unavailable;
- voltage and frequency excursions near current-limit transitions;
- communication delay, stale measurements and command loss.
Why adding BESS does not automatically stabilize the plant
BESS adds fast controllability, but only if its role is explicit. It may smooth ramps, hold reserve, support voltage, firm a dispatch schedule or form a local grid. Those objectives compete for inverter current and state-of-charge headroom. A battery at its upper energy limit cannot absorb a solar ramp; an inverter at active-current limit cannot provide unlimited reactive support.
The plant-level controller needs a priority policy for current saturation and a state-of-charge policy that preserves headroom for the service actually promised. Without those policies, the BESS is physically present but unavailable at the moment it is expected to stabilize the point of interconnection.
Evidence required before energization
Use EMT simulation where switching controls, weak-grid interaction or sub-cycle protection matter; use RMS studies for slower plant and grid behavior. Correlate model parameters to firmware revisions and site settings. Then run hardware-in-the-loop tests against the actual controller binaries and credible grid impedances.
Commissioning should close with measured evidence: synchronized voltage and current at the point of interconnection, converter limit states, controller setpoints, breaker events and time-aligned communications logs. A successful test is not “the plant stayed online.” It is proof that the intended control owner acted, margin remained, protection coordination held, and the same event can be reconstructed afterward.
Practical exit criteria
Design review is ready to close when the team can state the stable operating envelope, current-priority logic, measurement latency budget, ride-through sequence, protection timing margin and degraded-mode behavior. If those answers live in separate vendor documents and have never been exercised together, integration risk remains open.
Define the boundary
Name the operating state, interfaces, tolerances and degraded conditions. A test without a boundary only proves the sample survived once.
Capture the right signal
Choose measurements fast and close enough to the mechanism to explain cause, sequence and margin—not just the final alarm.
Set a decision rule
Agree before the test what passes, what triggers redesign and what uncertainty requires another experiment.
